How to Choose the Right CNC Machining Configuration

Picking the right CNC machining system for production isn't always straightforward. A lot of companies get stuck trying to figure out which setup truly fits their parts. And honestly? Real-world examples often tell you more than any spec sheet ever could. So here, we're walking through actual 3-axis and 5-axis machining cases to show you how they stack up. The goal is simple: help you pick a setup that not only speeds things up but also keeps unnecessary costs in check.

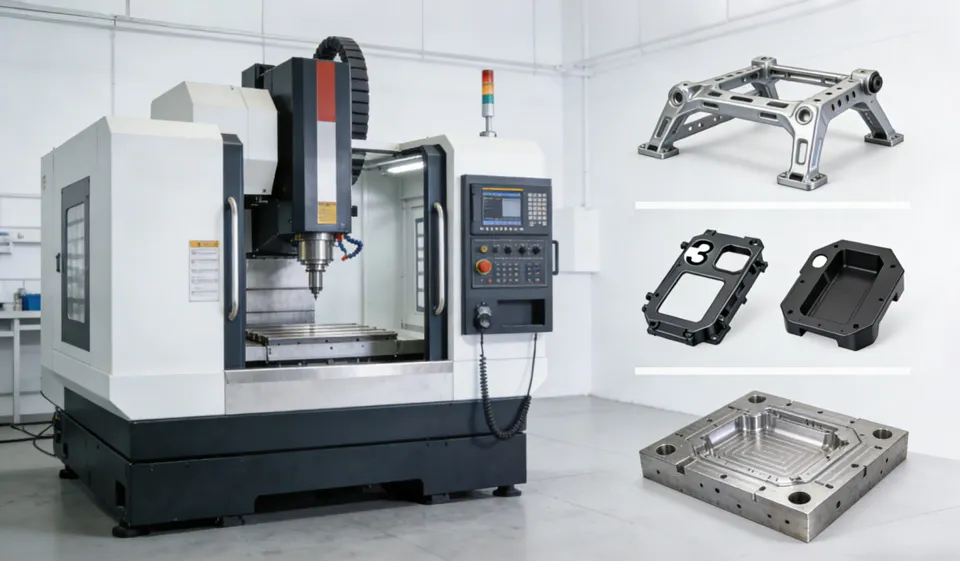

Typical Parts from Standard CNC Machining Systems

Standard 3-axis CNC machine tools move along three linear axes (X, Y, and Z), making them highly reliable for parts with simple structures. They are easy to operate, cost-effective, and suitable for mass production of commonly used parts.

• Automotive Brackets and Mounts: Parts such as chassis brackets, suspension brackets, and mounting plates have flat surfaces and regular hole shapes. These parts can be machined using a three-axis machine tool in a single setup, achieving a stable accuracy of approximately ±0.01–0.02 mm and a short machining cycle.
• 3C Product Housings: For laptop housings, back covers, and frame components, high-speed three-axis machine tools provide consistent surface quality (Ra 0.8–1.6 μm) and precise hole positioning, supporting the stable assembly of internal electronic components.
• Mold Bases and Structural Plates: Mold bases, support plates, and frame structures rely on three-axis machining for roughing, surface milling, and drilling. This method offers high material removal efficiency and effectively reduces production costs.

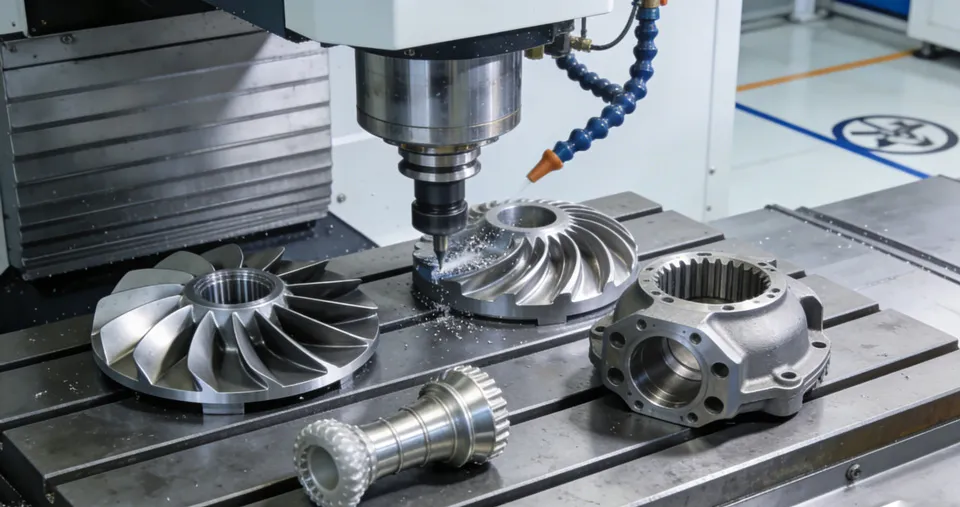

When Complex Parts Require Advanced Multi-Axis Machining

Five-axis CNC systems add two rotary axes to the standard three linear motion axes, allowing the tool to machine parts from almost any angle. Five-axis machining is crucial for parts requiring complex contours or multi-faceted machining.

• Aerospace Turbine Blades and Impellers: Curved surfaces and airflow-optimized contours cannot be fully achieved through three-axis machining. Five-axis machining can complete the machining of these parts in a single setup, avoiding errors caused by repeated clamping and meeting stringent aerospace tolerance requirements (±0.005 mm).
• Medical Orthopedic Implants: Implants such as those for the hip and knee joints require personalized, smooth, and biocompatible surfaces. Five-axis machining with dynamic tool angles significantly reduces scrap rates—from over 15% to below 1% in real-world production scenarios.
• Turbocharger Housings: Turbocharger housings, with their deep cavities and angled ports, require multi-angle machining. Five-axis systems can reduce setup time by nearly 60% and ensure precise alignment between internal channels and ports.

EUMASEIKI's CNC Solutions

As an integrated manufacturing and trading company, we supply CNC machine tools under the EUMASEIKI brand. We offer 3-axis and 5-axis machining centers designed for real-world manufacturing scenarios. Our 3-axis machines provide stable, economical performance for standard parts, while our 5-axis series supports high-precision machining of complex parts. We combine in-house production capabilities with global trading experience to provide customized solutions for international clients.

Conclusion of The Real-World Case Studies

For simple, single-sided parts, three-axis machining can effectively control costs and improve efficiency; For complex curved or multi-sided parts, five-axis machining can improve accuracy and reduce errors. The optimal choice always depends on the part's structure, tolerance requirements, and long-term production goals. If you would like to evaluate which CNC configuration is best suited for your part, please feel free to contact our team.
