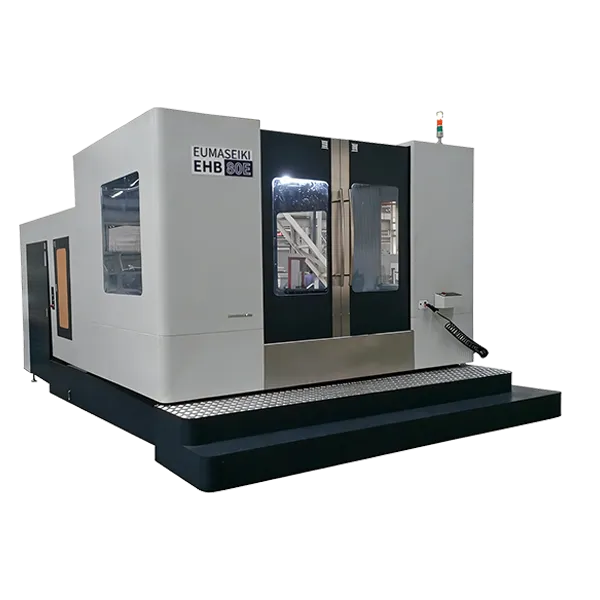

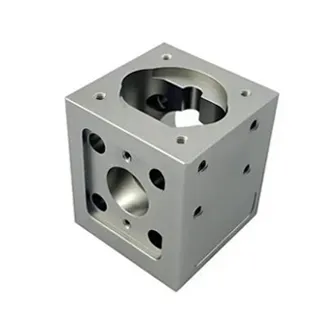

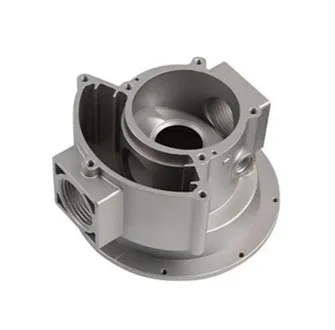

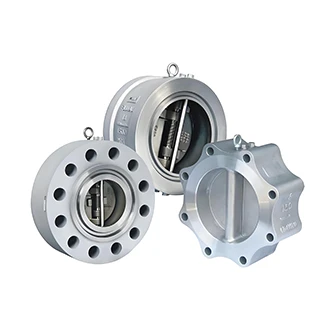

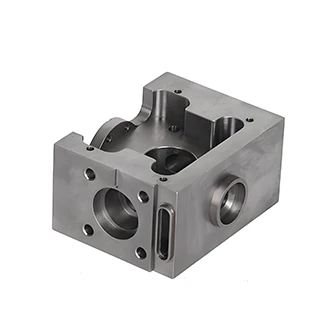

EUMASEIKI CNC horizontal machining center is a highly productive machine for complex parts machining like molds,dies,boxes and valve body types components which the material can be made of steel,cast iron or light metal alloys. The unique T-shaped structure could equip by single or double pallets with the 3 mutually perpendicular coordinate axes X, Y, Z to form a fully closed-loop processing for drilling, boring, reaming and tapping operations whether it need high-speed or high-torque cutting,from mass production to small batch production.It is characterized as high dynamic and thermal stability for high precision machining in the foundry, plastics, automotive and aerospace industries.
EUMASEIKI CNC horizontal machining centres EH50 and EH63 adopt the classic positive T-shaped dynamic column structure. Compared with the traditional inverted T-shaped structure, this model has higher rigidity and stronger processing capabilities. The B-axis table is standard equipped with circle encoder, spindle, ball screw, guideway, bearing, rotary table and other main components, all of which are internationally renowned brands. Specially suitable for rough and precision machining of various box type parts.

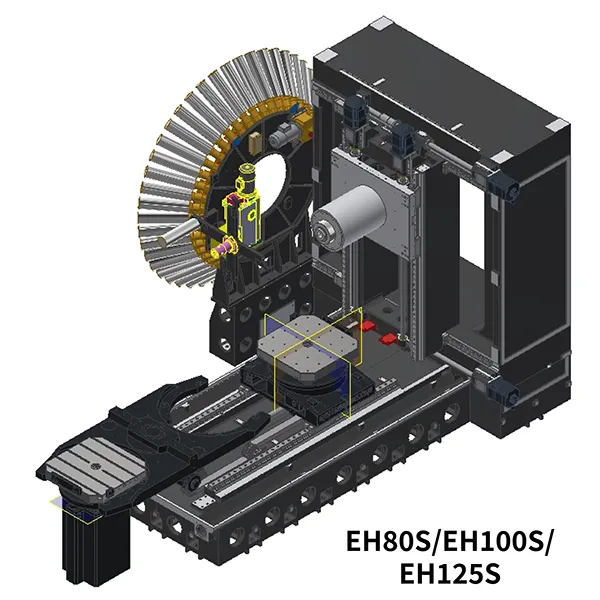

EUMASEIKI CNC horizontal machining centre EH80S, EH100S and EH125S models adopt German design concepts, with a frame layout, X-axis dual screw drive, large-span design, high rigidity, and high strength, achieving a perfect combination of high-precision and high-efficiency machining. The B-axis table series comes standard with circle encoder, spindles, ball screws, guideway, bearings, tables, and other major components all using internationally renowned brands. Very suitable for the needs of some high-end customers.
High performance
High strength
High rigidity
High dynamic and thermal stability
High accuracy for long terms
High reliability
|
Double-pallets horizontal machining center |
|
EH500 |
EH630 |
EH800S |
EH1000S |
|
X-axis travel (column transverse left and right) |
mm |
800 |
1050 |
1400 |
1700 |
|
Y-axis travel (spindle head up and down) |
mm |
700 |
900 |
1200 |
1400 |
|
Z-axis travel (worktable forward and backward movement) |
mm |
680 |
1000 |
1350 |
1500 |
|
Minimum 3 axis resolution |
mm |
0.001 |
0.001 |
0.001 |
0.001 |
|
Distance from the spindle end to NC worktable (vertical) |
mm |
90-790 |
100~1000 |
100~1450 |
250~1750 |
|
Distance from spindle center to NC worktable (horizontal) |
mm |
60-740 |
100~1100 |
50~1250 |
100~1500 |
|
B-axis worktable surface size |
mm |
2-500x500 |
2-630x630 |
2-800x800 |
2-1000x1000 |
|
B-axis worktable center hole diameter |
mm |
/ |
Φ55H7 |
Φ50H7 |
Φ50H7 |
|
B-axis worktable maximum rotation diameter |
mm |
φ950*2 |
φ1010 |
φ1450 |
φ1300 |
|
B-axis minimum division degree |
deg |
0.001˚ |
0.001˚ |
0.001˚ |
0.001˚ |
|
B-axis worktable maximum load capacity |
kg |
600 |
1200 |
2000 |
2000 |
|
B-axis rotation angle |
deg |
0~360° |
0~360° |
0~360° |
0~360° |
|
Spindle speed |
rpm |
10000 |
6000 |
6000 |
6000 |
|
Spindle taper |
|
BT40 |
SK 50 |
SK 50 |
BT 50 |
|
Fast feed rate (X/Y/Z) |
m/min |
24 |
30/ 30 / 30 |
30/ 30 / 30 |
20/ 20 / 20 |
|
Cutting feed rate (X/Y/Z) |
mm/min |
1~10000 |
1~10000 |
1~10000 |
1~10000 |
|
Tool holder type |
|
BT40 |
SK 50 |
SK 50 |
BT50 |
|
Tool magazine capacity |
pcs |
60 |
40 |
60 |
45 |
|
Maximum tool diameter |
mm |
φ95 |
φ125/φ250 |
φ125/φ250 |
φ125/φ250 |
|
Maximum tool length |
mm |
300 |
300 |
550 |
550 |
|
Maximum tool weight |
kg |
8 |
25 |
25 |
25 |
|
Tool changing method |
|
arm type |
arm type |
arm type |
arm type |
|
Tool changing time (tool-to-tool) |
sec. |
5 |
5 |
6 |
7.6 |
|
Spindle power |
kw |
11/15 (S1/S6 25%) |
15/18.5 (S1/S3 60%) |
22/26 (S1/S3 60%) |
30/37(S1/S6 60%) |
|
Spindle torque |
Nm |
52.5/95.5 (S1/S6 25%) |
143/236 (S1/S3 60%) |
140/223(S1/S3 60%) |
249/307(S1/S6 60%) |
|
Spindle torque with BF reduction gearbox |
Nm |
/ |
/ |
420/669 (S1/S3 60%) |
789/973(S1/S6 60%) |
|
X/Y/Z axis feed motor power |
kw |
3/3/3/1.8 |
3/3/3/1.8 |
4.3x2/ 4.3x2 / 5.2 |
4.3x2/ 5.2 / 5.2 |
|
X/Y/Z axis feed motor torque |
Nm |
27/27/27/11 |
36/36/36/11 |
27x2/27x2/36 |
27x2/36/36 |
|
Cutting coolant motor power |
kw |
1+1 |
1.51+1.51 |
1.51+1.51 |
1.51+1.51 |
|
Water tank capacity |
L |
600 |
600 |
600 |
600 |
|
Air pressure requirement |
kg/cm2 |
6 |
6 |
6 |
6 |
|
Hydraulic station system pressure |
kg/cm2 |
70 |
70 |
70 |
70 |
|
Required power capacity |
kva |
50 |
50 |
120 |
135 |
|
X/Y/Z axis positioning accuracy |
mm |
0.005 |
±0.008 |
0.01 |
0.012 |
|
X/Y/Z axis repeat positioning accuracy |
mm |
0.003 |
±0.006 |
0.006 |
0.008 |
|
B-axis worktable positioning accuracy |
|
15“ |
15“ |
15“ |
15” |
|
B-axis worktable repeatability accuracy |
|
±4″ |
±4″ |
±4″ |
±4″ |
|
Machine height |
mm |
3200 |
3200 |
3700 |
3900 |
|
Machine size |
mm |
3000x3300 |
3500x7100 |
7100x4000 |
9100x5500 |
|
Machine weight (approx.) |
kg |
9000 |
22000 |
27000 |
35000 |
|
Numerical control system |
|
FANUC 0i-MF |
FANUC 0i-MF |
FANUC 0i-MF |
FANUC 0i MF |
Fully enclosed cover
Basic tool box
High pressure water gun + air gun
Automatic tool magazine
Automatic chain plate chip conveyor + chip collector
Electrical cabinet air conditioner
3 axis THK/PMl linear roller guideway
Control panel on the side of the tool magazine
USB interface, Ethernet port with good anti-interference performance
B-axis rotation angle 360'
Machine color: RAL7035 light gray and RAL5008 dark blue (or customized)
Pause and work completion light
Cutting coolant system
FANUC 0i MF plus control system with 15" colour screen
Automatic power cut-off M30
Spindle air blowing device
Spindle oil cooler
Leveling bolts and foundation blocks
Spindle oil lubrication system
3 axis C3 high precision ball screw
Oil-water separator
Manual pulse generator
B-axis circular encoder / Minimum division 0.001 '
Noise level is less than 80db when the equipment is in operation
Work lights
Automatic centralized lubrication system
Axis position accuracy is in accordance with VDl/DGQ3441
Fault indicator light
The machine's enclosed protection complies with GB15760-2004 General Technical Conditions for Safety Protection of Metal Cutting Machine Tools
Geometric accuracy standard: GB/T 17421.1 General Technical Conditions for Geometric Accuracy of Metal Cutting Machine Tools
X/Y/Z axis grating scale
Two-Way/Four-Way Oil Distributor for Worktable
Spindle inner coolant
C0/C1 ultra high accuracy ball screw
One-year spare parts
Rotating Window
Chip Flushing System(Shower Type)
BF gearbox
Renishaw Laser Tool Setter NC4/TS27R
Oil Mist Collector
UP class linear guideway
Emulsion Paper Bag Filter
Renishaw RMP40/60 workpiece measurement System with L-50/70/700mm Probe
