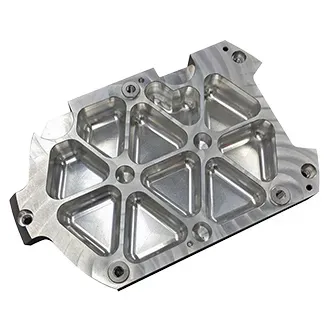

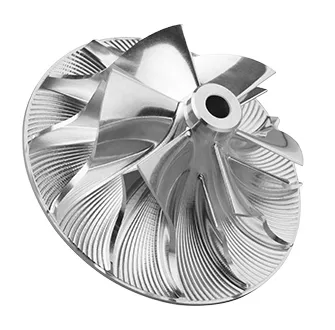

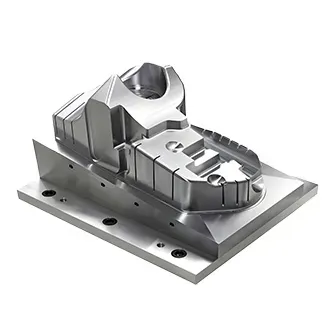

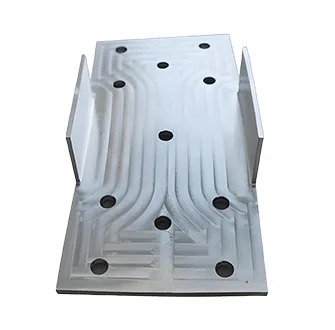

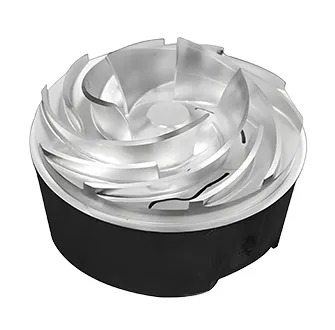

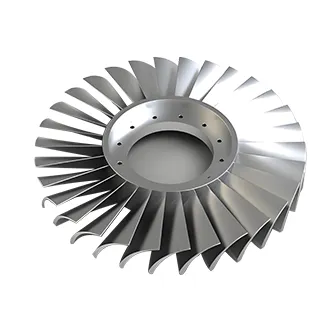

EUMASEIKI A/C axis CNC 5-axis machining center originating from european design concepts, is a multifunctional machining center with upper gantry-type and trapezoid structure of crossbeam design. Excellent rigidity frame body, swing table dual arm support.Both torque motor controlled A/C axis tilting table size 630/800mm, Direct drive or electrical spindle is both available to make heavy cutting and high dynamic accuracy 5-axis milling and turning operation for complicated technologically demanding workpieces.It is intended for production of metallic parts like pressing, plastic making, automotive and aviation industry.

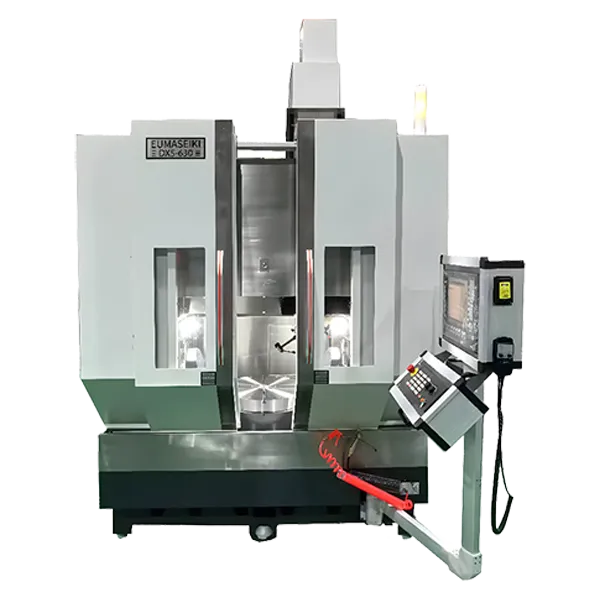

EUMASEIKI DX series Multifunctional 5-axis machining centre is upper gantry-type design. The machine frame consists of two side walls fixed as the base. The crossbeam moves in the longitudinal direction (X-axis) along the upper wall two sides.The spindle ram moves in the transversal direction (Y-axis) along the crossbeam. The spindle ram moves in the vertical direction (Z-axis). A two-axis tilting rotary table, consisting of a rotary part (C´-axis) and a tilting part (A´-axis) is installed into the fixed two base wall side.The working axes X, Y, Z are moving along linear guideways standard configurate with heidenhain grating scale,as well as the A/C axis tilting rotary table also standard with heidenhain circle encoder.All the sizes and locations makes it a highly productive machine，characterized high dynamic and thermal stability for high accuracy machining.Spindle and other configuration requirement customization is our expertised task.
High accuracy at machining
Easy loading of big workpieces
Favourable ratio machine area/ workpiece size
Machining in 5-axes
Milling and turning technology
High dynamics and temperature stability
|
DX5 Series machining center |
Unit |
DX5-630 |
DX5-800 |
|
|
Travel |
X/Y/Z Travel |
mm |
700/700/500 |
800/900/620 |
|
Worktable |
Max. swing diameter of worktable |
mm |
800 |
800/1000 |
|
Max. load capacity of worktable |
kg |
800 |
850/1200 |
|
|
Distance (spindle Nose to worktable) |
mm |
120-620 |
120-740 |
|
|
Worktable Surface Diameter |
mm |
∅630 |
∅800 |
|
|
Worktable T-Slot Size |
mm |
14H8 |
14H8 |
|
|
Direct Spindle |
Spindle Speed |
mm |
(direct drive) 15000rpm/HSKA63 KENTURN |
(direct drive) 15000rpm/HSK A63 KENTURN |
|
Main Motor Power |
kw |
22/33(S1/S6-40%) |
22/33(S1/S6-40%) |
|
|
Main Motor Torque |
Nm |
140/260 (S1/S6-40%) |
140/260 (S1/S6-40%) |
|
|
Electrical spindle |
Spindle Speed |
mm |
(electrical spindle) 20000rpm/HSKA63 CELLS |
(electrical spindle) 20000rpm/HSKA63CELLS |
|
Main Motor Power |
kw |
31/37 (S1/S6 60%) |
31/37(S1/S6 60%) |
|
|
Main Motor Torque |
Nm |
100/120 (S1/S6 60%) |
100/120 (S1/S6 60%) |
|
|
Feed |
X/Y/Z Rapid Traverse Speed |
m/min |
36/36/36 |
36/36/36 |
|
X/Y/Z Cutting Feed Speed |
mm/min |
1 ~ 20000 |
1 ~ 20000 |
|
|
X/Y/Z Feed Motor Power |
kw |
4.3/3.1 * 2/4.3 |
4.3/3.1 * 2/4.3 |
|
|
A/C Axis |
A-axis Travel (Tilting Axis) |
degree |
± 120 |
±120 ° |
|
A-axis Drive Type |
|
Single drive |
Double drive |
|
|
C-axis Travel (Rotary Axis) |
degree |
360 ° |
360 ° |
|
|
A/C Axis Speed |
rpm |
60/100 |
60/100 |
|
|
A/C Axis Motor Power |
kw |
6.3/8.11 |
15 * 2/15 |
|
|
A/C Axis Rated Torque |
Nm |
1290/600 |
2200 x 2/1800 |
|
|
A/C Axis Maximum Torque |
Nm |
2400/1100 |
3900 x 2/2230 |
|
|
Tool magazine |
Tool Capacity |
pcs |
40 |
40 |
|
Maximum Tool Diameter |
mm |
∅75/∅120 |
∅75/∅120 |
|
|
Maximum Tool Length |
mm |
300 |
300 |
|
|
Maximum Tool Weight |
kg |
8 |
8 |
|
|
Tool Change Time (Tool-to-Tool) |
sec . |
5.0 |
5 .0 |
|
|
Others |
Coolant Tank Capacity |
L |
250 |
300 |
|
Coolant Motor Power |
kw |
1.0+1.0 |
1 . 0+1 .0 |
|
|
Power Supply Capacity |
kva |
60 |
90 |
|
|
Air Pressure Requirement |
kg/cm² |
6 |
6 |
|
|
Air Pressure Flow Rate |
L/min |
500 |
500 |
|
|
Size |
Machine Dimensions (L×W×H) |
mm |
5200x3300x3400 |
5500x3600x3750 |
|
Machine Weight |
kg |
16000 |
23000 |
|
|
Accuracy |
Positioning Accuracy (X/Y/Z Axis) VDI3441 |
mm |
0.008 |
0.008 |
|
Positioning Accuracy (A/C Axis) |
sec. |
10 " |
10 " |
|
|
Repeat Position Accuracy (X/Y/Z Axis)VDI3441 |
mm |
0.004 |
0.004 |
|
|
Repeat Position Accuracy (A/C Axis) |
sec . |
4 " |
4 " |
|
|
CNC Control System |
CNC Control System |
|
SIEMENS ONE |
SIEMENS ONE |
Fully enclosed cover
Chip flushing device
3 color light
Automatic tool changer with 40 tools
Oil-water separator
Automatic power-off (M30)
THK/PMI linear roller guideway
Chain plate automatic chip conveyor + cart
Basic toolbox
THK/PMI ball screws
Cutting fluid cleaning spray gun and air gun
Electrical cabinet air conditioner
Torque motor A/C tilting rotary table with dual drive
Automatic centralized lubrication system
Leveling bolts and foundation blocks
A/C axis Heidenhain circular encoders
Hydraulic station system
Safety door lock
High-quality castings and precision machining
Spindle air blow device
XYZ axis linear grating scale
Spindle oil cooling / spindle water cooling
Manual pulse generator
One year supply of spare parts
A/C-axis water cooling device
RS232C, USB, and DNC Ethernet interface
CNC system: Siemens ONE 15 inch color screen
Cutting coolant system
LED work indicator light
80 tool magazine
Anti collision system
Top fully enclosed structure
Tool setter: Renishaw TS27R/NC4
Spindle and screw temperature compensation
Tool identification system (RFID function)
Workpiece measurement: Renishaw OPM40/OPM60/RMP40/RMP60
Magnetic separator
Rotating window
Spindle internal coolant 20/40/70 bar
Oil Mist collector
Automatic door
