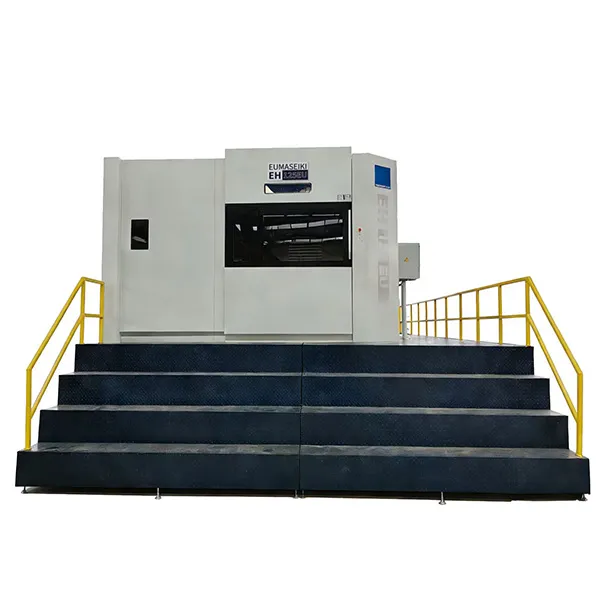

The EUMASEIKI HU series universal 5-axis horizontal machining center is in the highly stable European design concepts with maximum precision, performance and efficiency allow the highest machining performance and maximum precision with high dynamics.Complete machining with milling and turning on one machine in on set-up.NC-controlled swiveling milling head as A axis for 5-sided machining and simultaneous 5-axis milling.From hard-to-cut materials such as those found in the aerospace sector, to the highest requirements for surface quality such as in tool and mould making.

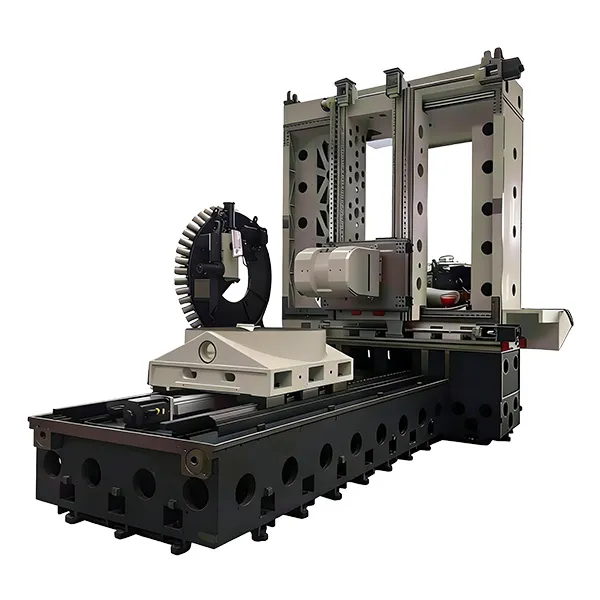

Higher stiffness thanks to box in box European design concept
Wide linear guides and large drives

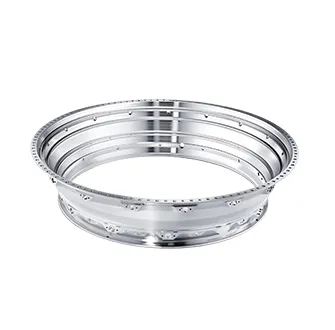

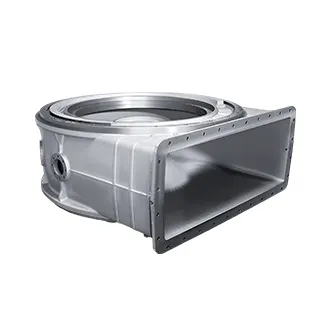

Various technology integration possible: Milling, turning, gear cutting
Full cooling of the axis drives,Comprehensive cooling measures
A-axis with gears or DD motor,max torque up to 5000Nm.
Table size from 1250mm to 1600mm,loading weight up to 6 tons.
Maximum productivity through complete machining on one machine
|
5-axis Horizontal machining center |
|
HU1250 |
HU1400 |
HU1600 |
|
X-axis travel (transverse/left-right movement of the column) |
mm |
1660 |
1660 |
2200 |
|
Y-axis travel (vertical/up-down movement of the spindle head) |
mm |
1600 |
1210 |
1900 |
|
Z-axis travel (longitudinal/forward-backward movement of the table) |
mm |
1600 |
1300 |
2200 |
|
Minimum three-axis resolution |
mm |
0.001 |
0.001 |
0.001 |
|
Distance from the end of the spindle to the CNC desktop (vertical) |
mm |
100~1700 |
150~1360 |
-190~1710 |
|
Distance from spindle center to CNC work table (horizontal) |
mm |
0~1600 |
100~1310 |
100~2000 |
|
Maximum workpiece height |
mm |
1300 |
1000 |
1500 |
|
Spindle center above CNC table center |
mm |
30 |
30 |
30 |
|
B axis table size |
mm |
Ø1250 |
Φ1400 |
Ø1600 |
|
Diameter of the central hole of the B axis table |
mm |
Φ180 |
Φ180 |
Φ180 |
|
Width of T-slot on B-axis work table |
mm |
24H8 |
24H8 |
24H8 |
|
Maximum rotation diameter of B axis table |
mm |
1500φ |
1550φ |
1850φ |
|
Minimum B axis division |
deg |
0.001˚ |
0.001˚ |
0.001˚ |
|
Maximum B-axis worktable load |
kg |
3000 |
4000 |
6000 |
|
B axis rotation angle |
deg |
0~360° |
0~360° |
0~360° |
|
Minimum division on axis A |
deg |
0.001˚ |
0.001˚ |
0.001˚ |
|
A-axis rotation angle |
deg |
±110˚ |
±110˚ |
±110˚ |
|
Spindle speed |
rpm |
3000 |
3000 |
3000 |
|
Spindle taper |
|
ISO 50 |
ISO 50 |
ISO 50 |
|
Rapid feed rate (X/Y/Z) |
m/min |
36/ 36 / 36 |
36/ 36 / 36 |
36/ 36 / 30 |
|
Cutting feed rate (X/Y/Z) |
mm/min |
1～10000 |
1～10000 |
1～10000 |
|
Shank type |
|
BT50 |
BT50 |
BT50 |
|
Tool magazine capacity |
pcs |
45 |
45 |
45 |
|
Maximum tool diameter (adjacent tool/without adjacent tool) |
mm |
110φ/200φ |
110φ/200φ |
110φ/200φ |
|
Maximum tool length |
mm |
350 |
350 |
350 |
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
Tool change method |
|
Arm type |
Arm type |
Arm type |
|
Tool change time (tool to tool) |
sec. |
5.0 |
5.0 |
5.0 |
|
Main motor power (S1/S6 25%) |
kw |
22/41.8 |
22/41.8 |
22/41.8 |
|
Main motor torque (S1/S6 25%) with gear box |
Nm |
840/1596 |
840/1596 |
840/1596 |
|
X/Y/Z Feed Motor Power |
kw |
4.4x2/4.4x2/8.2 |
4.4x2/4.4x2/8.2 |
4.4x2/4.4x2/8.2 |
|
X/Y/Z Feed Motor Torque |
Nm |
36x2/36x2/48 |
36x2/36x2/48 |
36x2/36x2/48 |
|
A-axis feed motor power |
kw |
3.1 |
3.1 |
3.1 |
|
A-axis rated torque/maximum torque |
Nm |
3987/5000 |
3987/5000 |
3987/5000 |
|
A-axis locking moment |
Nm |
6000 |
6000 |
6000 |
|
A-axis speed |
rpm |
10 |
10 |
10 |
|
Distance from A axis nose to the swing axis |
mm |
270 |
270 |
270 |
|
B axis feed motor power |
kw |
37.7 |
37.7 |
37.7 |
|
B-axis feed motor torque |
Nm |
6000 |
6000 |
6000 |
|
B axis locking torque |
Nm |
10000 |
10000 |
10000 |
|
B axis speed |
rpm |
10 |
10 |
10 |
|
Reduced engine coolant power |
kw |
1.51+1.51 |
1.51+1.51 |
1.51+1.51 |
|
Coolant tank capacity |
L |
600 |
600 |
600 |
|
Air pressure requirement |
kg/cm2 |
6 |
6 |
6 |
|
Pressure in the hydraulic system |
kg/cm2 |
70 |
100 |
100 |
|
Required power |
kva |
90 |
90 |
90 |
|
X/Y/Z axis positioning accuracy |
mm |
0.008 |
0.008 |
0.010 |
|
X/Y/Z axis repeat positioning accuracy |
mm |
0.005 |
0.005 |
0.006 |
|
A/B axis positioning accuracy |
sec |
8 |
10 |
10 |
|
A/B axis repeat positioning accuracy |
sec |
4 |
6 |
6 |
|
Axial end/radial runout of table |
mm |
0.02 |
0.02 |
0.02 |
|
Five-axis linked RTCP precision |
mm |
±0.025 |
±0.025 |
±0.025 |
|
Machine height |
mm |
5200 |
4500 |
5200 |
|
Machine size |
mm |
4800×5500 |
5900×5400 |
10600×6500 |
|
Machine weight |
kg |
33000 |
33000 |
52000 |
|
CNC system |
|
SIEMENS ONE |
SIEMENS ONE |
SIEMENS ONE |
Fully enclosed protective housing.
15-inch diagonal color monitor.
Automatic tool changer with knife arm for 45 tools.
A-axis rotation angle ±110°.
HEIDENHAIN RCN2511 optical grating along A-axis / minimum division 0.001゜.
Mechanical spindle BT50/3000 rpm.
Mechanical spindle motor with torque (S1-100%/S6-25%) 22/41.8 kW -840/1596 Nm
Three-axis linear ball guide (Japan) THK X/Y/Z
B-axis torque motor, 37.7 kW, 360° rotation angle.
B axis rotary table Ø1250mm
Optical grating HEIDENHAIN RCN2310B / minimum division 0.001゜
External cutting coolant system, cooling pressure 4 bar.
The coolant is thermostatically controlled and equipped with a temperature sensor.
Pre-reminder and sound alert for high and low coolant level
Automatic centralized lubrication system
Air blowing device for the spindle
Spindle thermal compensation function and direct cooling lubrication system.
Device for cleaning chips
Installation for supplying water and air under high pressure
Electrical unit of the refrigeration air conditioning system
Manual pulse generator
USB interface, Ethernet port with good anti-interference performance
Workspace lighting
Light indicators for stopping and finishing work.
Fault indicator light
Automatic energy switch M30
Basic set of tools
Horizontal adjustment bolts and support blocks.
Automatic device for removal and collection of chips
Control panel for the side block of the tool magazine
SEMENS ONE System
HEIDENHAIN optical ruler, X/Y/Z axes
Water release system from the center of the spindle, cooling pressure 40 bar.
Oil-water separation system device
Oil mist and dust collection device
Rotating viewing window
The tool magazine is equipped with an automatic tool damage detection device.
Workpiece measurement cycle program and automatic tool setting cycle program
RTCP five-axis communication detection function and correction cycle program
OMATIVE adaptive processing software.
Machine condition monitoring system
Open PLC data interface for automated manufacturing systems with open OPC-UA license
Renishaw RMP60 linear measuring system
Renishaw NC4 laser tool setting sensor
3D machine model files and simulation environment files for VERICUT, corresponding UGCAM post-processing files.
