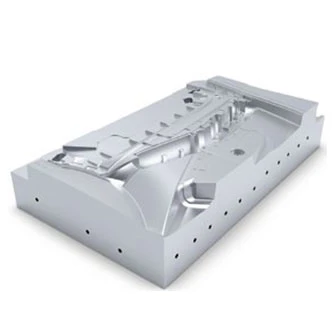

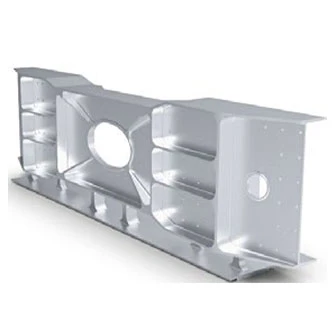

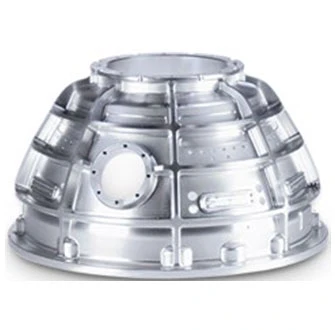

Eumaseiki travelling column swivel head with insert C-axis rotary table high-speed 5-axis CNC machining center offers maximum flexibility and maximum the table versatility to use the extra table space for secondary operations or 3-axis work, Capacity to machine a wide range of size and shapes in various materials. The flexible working area with travel distances of max. reach to 2,000mm in the X-axis, 900mm in the overhanging Y-axis and 800mm in the Z-axis.5-aixs simultaneous working with the powerful B-axis milling head and the integrated C-axis to achieve perfect operation performance.Eumaseiki technology resulting in the fastest cut with the best surface finish.Avery suitable machine for production in various sectors such as Aerospace, Energy, Automotive etc...
EUMASEIKI UB series swivel head 5-axis milling machine is column moving design.Over 2000mm width integrated bed fixed as base. Column with the base saddle moves in the transversal direction(X-axis) along the two guideway.Column moves in the longitudinal direction(Y-axis) along the saddle guideway.Spindle ram moves in the vertical direction(Z-axis).Rotary table inserts in the transversal flat table as C axis，DD motor drive,speed to 100rpm.Swivel B head range +/-120º,speed range 50-15000rpm.All linear guides as well as C axis table standard configurate with Heidenhain optical scale and all motors with constant temperature cooling.All these achieves the best long-term accuracy and high long-term stability of the machine.
Flexible modular construction and ergonomic, attractive design
Available as 3, 4 or 5 axes version
High-performance motor spindle
Rigid linear roller guides size 55 (X-axis)
Ultra high accuracy ball screws on the 3 axis, precise and quiet operation
Integrated round table and B-axis with torque motors
Flexible configuration of tool magazine systems
State-of-the-art control systems SIEMENS One and HEIDENHAIN TNC 640
|
UB Series machining center |
|
UB1300C |
UB1800C |
UB2000C |
|
X-axis travel (Column left-right ) |
mm |
1300 |
1800 |
2000 |
|
Y-axis travel (Column front-back ) |
mm |
560 |
900 |
900 |
|
Z-axis travel (Spindle head up-down) |
mm |
560 |
800 |
800 |
|
Distance(spindle nose to table) |
mm |
100~660 |
100~900 |
100~900 |
|
Distance(spindle center to table) |
mm |
269.5~829.5 |
269.5-1069.5 |
269.5~1069.5 |
|
Rectangular table surface dimensions (Fixed table) |
mm |
1500 x 560 |
2000 x 900 |
2500 x 900 |
|
Max. load of rectangular table |
kg |
1500 |
2000 |
3500 |
|
T-slot dimensions |
mm |
14x100x5 |
22x150x5 |
18x150x5 |
|
Spindle taper |
|
HSK-A63 |
HSK-A63 |
HSK-A63 |
|
Spindle speed |
rpm |
12000 |
12000 |
12000 |
|
Main motor power (S1/S6-40%) |
kw |
25.1/33.9 |
25.1/33.9 |
25.1/33.9 |
|
Main motor torque (S1/S6-40%) |
Nm |
79.9/107.9 |
79.9/107.9 |
79.9/107.9 |
|
B-axis spindle head tilt angle |
deg. |
-120º ~ +120º | -120º ~ +120º | -120º ~ +120º |
|
B-axis tilt minimum indexing |
deg. |
0.001° |
0.001° |
0.001° |
|
B-axis speed |
rpm |
50 |
50 |
50 |
|
B-axis continuous torque |
Nm |
580 |
580 |
580 |
|
B-axis maximum torque |
Nm |
1160 |
1160 |
1160 |
|
B-axis braking torque |
Nm |
2400 (50bar oil pressure) |
2400 (50bar oil pressure) |
2400 (50bar oil pressure) |
|
B-axis feed motor power |
kw |
4.4 |
4.4 |
4.4 |
|
B-axis encoder circular grating |
|
HEIDENHAIN |
HEIDENHAIN |
HEIDENHAIN |
|
C-axis worktable diameter |
mm |
Φ500 |
Φ800 |
Φ800 |
|
C-axis worktable rotation angle |
deg. |
360 |
360 |
360 |
|
C-axis worktable rotation speed |
rpm |
100 |
80 |
80 |
|
C-axis CNC rotary table drive method |
|
DD motor |
DD motor |
DD motor |
|
C-axis maximum torque |
Nm |
275 |
3600 |
3600 |
|
C-axis rated torque |
Nm |
145 |
2000 |
2000 |
|
C-axis CNC rotary table maximum load capacity |
kg |
300 |
1800 |
1800 |
|
C-axis encoder circular grating |
|
HEIDENHAIN |
HEIDENHAIN |
HEIDENHAIN |
|
Rapid feed speed (X/Y/Z) |
m/min |
36/36/32 |
24 / 30 / 30 |
20 / 30 / 30 |
|
Cutting feed speed (X/Y/Z) |
mm/min |
1 ~ 10000 |
1 ~ 10000 |
1 ~ 10000 |
|
X/Y/Z-axis feed motor power |
kw |
4.3/4.3/4.3 |
7.7/5.2/5.2 |
7.7/4.4/4.4 |
|
X/Y/Z-axis feed motor torque |
Nm |
27/27/27 |
48/36/36 |
48/36/36 |
|
Tool holder type |
|
HSK-A63 |
HSK-A63 |
HSK-A63 |
|
Tool magazine capacity |
pcs |
40 |
40 |
40 |
|
Maximum tool diameter |
mm |
Φ76 / Φ150 |
Φ76 / Φ150 |
Φ76 / Φ150 |
|
Maximum tool length |
mm |
300 |
300 |
300 |
|
Maximum tool weight |
kg |
8 |
8 |
8 |
|
Tool change time (Tool to Tool) |
sec. |
5 |
5 |
5 |
|
Cutting coolant pump motor power |
kw |
0.75 + 0.75 |
0.75 + 0.75 |
0.75 + 0.75 |
|
Air pressure requirement |
kg/cm2 |
6 |
6 |
6 |
|
Required power supply capacity |
KVA |
70 |
110 |
110 |
|
X/Y/Z axis Position accuracy (German VDI 3441) |
mm |
0.012 |
0.015 |
0.02/0.01/0.01 |
|
B axis Position accuracy |
sec. |
8” |
8” |
8” |
|
C axis Position accuracy |
sec. |
10” |
10” |
10” |
|
X/Y/Z axis Repeat position accuracy (German VDI 3441) |
mm |
0.008 |
0.008 |
0.012/0.006/0.006 |
|
B axis Repeat position accuracy |
sec. |
4” |
4” |
4” |
|
C axis Repeat position accuracy |
sec. |
4” |
4” |
4” |
|
Machine height |
mm |
2964 |
3500 |
3200 |
|
Floor space |
mm |
2900x2500 |
5650x4300 |
7500× 4800 |
|
Machine net weight |
kg |
13000 |
20000 |
22000 |
|
CNC system |
|
SIEMENS ONE |
SIEMENS ONE |
SIEMENS ONE |
Fully dynamic column structure design
C-axis circular encoder (HEIDENHAIN)
Cutting fluid cleaning spray gun and air gun
Fully enclosed cover
Electric spindle water cooling system device
Worktable lighting
Automatic 40-tool magazine
B-axis water cooling system device
3 color light
Taiwan electric spindle
C-axis water cooling system device
Automatic power-off on M30
THK/PMI linear roller guides
Cutting coolant system
Manual pulse generator
PMI/HIWIN C1-grade ball screws
Oil-water separator
2 USB ports, and Ethernet interface
Rectangular worktable (fixed and non-movable worktable)
Automatic centralized lubrication system
Electrical cabinet air conditioner
B-axis circular encoder (HEIDENHAIN)
Spindle air blowing device
Basic toolbox
X/Y/Z axis grating scales
Chip flushing device
Leveling bolts and foundation blocks
High-quality castings and precision machining
High-power hydraulic system
One-year spare parts
C-axis DD motor rotary table
Chain-type chip conveyor and chip collection cart
CNC system: Siemens One with a 15-inch screen
Spindle inner coolant 20/40/70 bar
Renishaw workpiece measuring device RPM40/RPM60
Renishaw tool setter NC4/TS27R
Oil mist collector
Rotating window
Heidenhain iTNC640 (5-axis linkage)
Center calibration system (including RENISHAW probe OMP60 + standard measuring ball + measurement software)
NX post-processing
Fully enclosed telescopic upper cover
