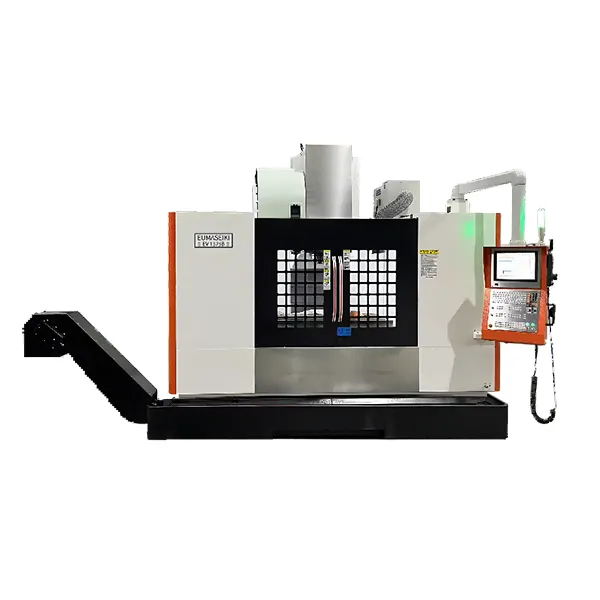

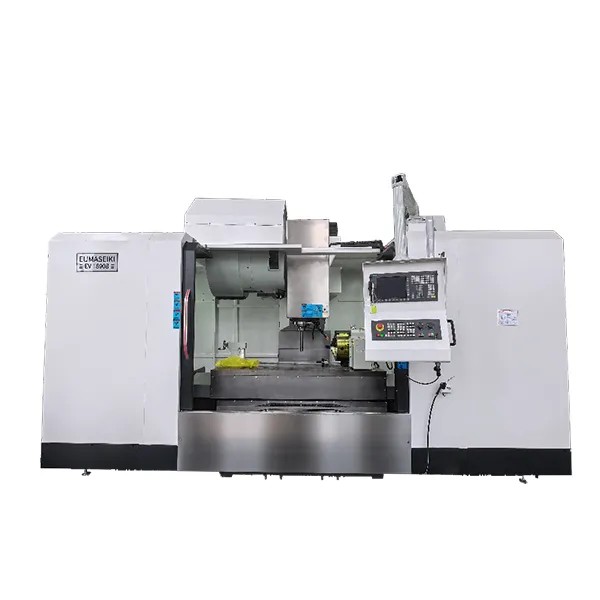

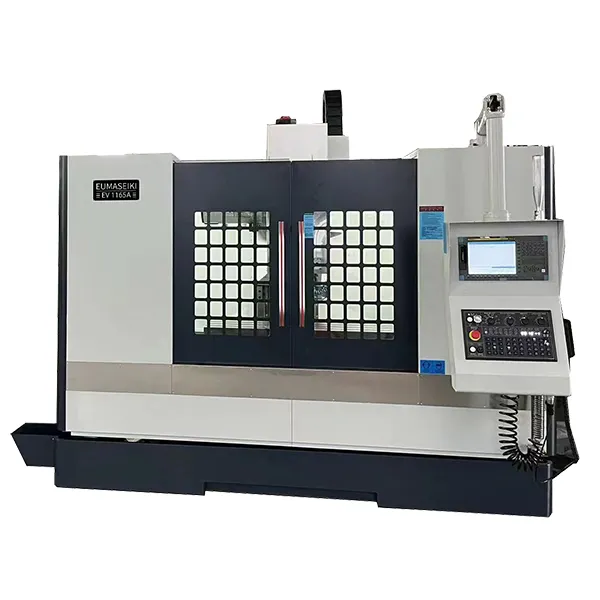

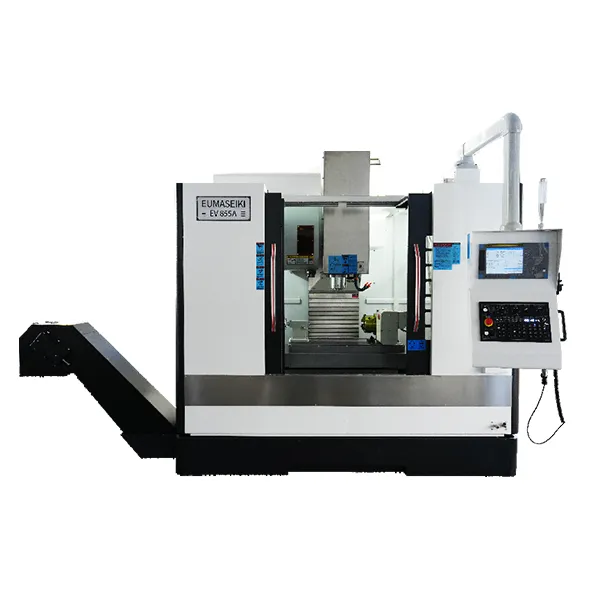

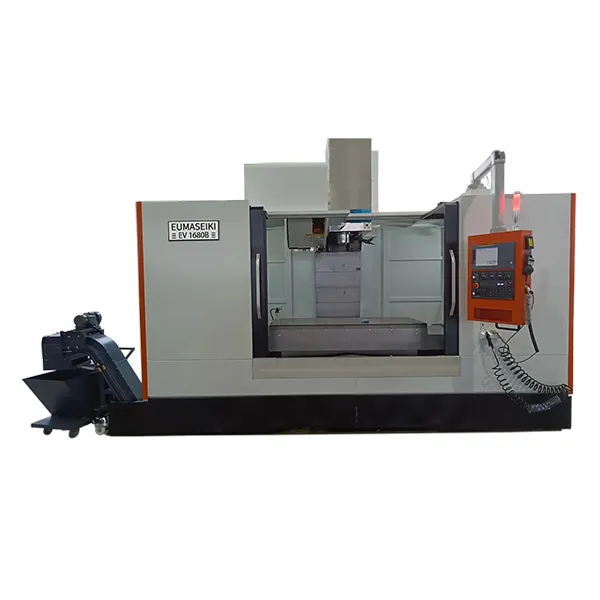

Eumaseiki the innovated CNC vertical machining center, is composed of two stationary castings - the base and the column which are both combined with marble mineral materials.Secondary annealing process, longer terms keeping for further eliminate stress, ensuring a prolonged service life.Core components such as spindle, ball screw, guideway are all sourced from high-end products of mainstream brands imported from Taiwan/Japan. The assembly of each machine is carried out by our experienced technicians from Taiwanese enterprises with many years professional experience. Compared to market existing models,our unique 3 axis CNC machining centers can be varied customized featuring higher torque, wider travel range and faster speed.Optionally, it is also can equipped with 4-axis rotary table for 5 face or 5-axis processing. Possessing unparalleled technical characteristics.
Eumaseiki CNC vertical machining centres are high-performance machines intended for complex workpiece machining,covering the range of technologies from the high-torque to the high-speed machining.The machine is formed by two steady castings,the base and the column. The column is provided with guideways along the spindle head travel. The work table travels in the longitudinal direction (X-axis) along the cross saddle. The cross saddle moves in the transverse direction (Y-axis) along the base. All guideways are formed by linear guideway with rollers. Their size and locations allow a high load of the table, saddle and spindle head while the high accuracy processing are kept even at the interrupted cut. These technical also ensures the machine long service life to enable the stability milling, drilling, boring, reaming and threading operations on workpieces made of steel, cast iron and light-metal as well as nonferrous metal alloys.
High performance
High strength
High rigidity
High dynamic and thermal stability
High accuracy for long terms
High reliability
|
Vertical machining centers |
Unit |
EV-855A |
EV-1055A |
EV-1165A |
EV-1370A |
EV-1475B |
EV-1580B |
EV-1680B |
EV-1890B |
|
X-axis travel |
mm |
810 |
1000 |
1100 |
1300 |
1400 |
1500 |
1600 |
1800 |
|
Y-axis travel |
mm |
550 |
550 |
650 |
720 |
750 |
800 |
800 |
900 |
|
Z-axis travel |
mm |
560 |
580 |
650 |
720 |
750 |
700 |
700 |
800 |
|
Distance (spindle nose to worktable) |
mm |
130-690 |
120-700 |
120-770 |
130-850 |
150-900 |
155-855 |
160-860 |
150-905 |
|
Distance (spindle center to column ) |
mm |
595 |
595 |
673 |
735 |
875 |
855 |
885 |
992 |
|
Work table size |
mm |
1000x550 |
1100x550 |
1300x650 |
1400x700 |
1500x700 |
1600x800 |
1700x800 |
2000x900 |
|
Max. Load on worktable |
kg |
650 |
650 |
900 |
1000 |
1000 |
1200 |
1500 |
1800 |
|
T-slot size (width x distance x number) |
mm |
18x90x5 |
18x90x5 |
18x120x5 |
18x90x5 |
18x100x7 |
22x110x7 |
22x110x7 |
22x125x7 |
|
Spindle taper |
type |
ISO 40 |
ISO 40 |
ISO 40 |
ISO 40 |
ISO 50 |
ISO 50 |
ISO 50 |
ISO 50 |
|
Feed rate(X/Y/Z) |
m/min |
48/48/32 |
48/48/32 |
36/36/24 |
36/24/24 |
36/24/24 |
20/20/20 |
20/20/20 |
20/20/20 |
|
Cutting feed rate (X/Y/Z) |
mm/min |
20000 |
20000 |
15000 |
15000 |
10000 |
10000 |
10000 |
10000 |
|
Ball screw(X/Y/Z) |
mm |
φ40/16 |
φ40/16 |
φ40/12 |
φ40/12 |
φ40/12 |
φ50/10 |
φ50/10 |
φ50/10 |
|
Linear guideway |
mm |
35/45/45 |
35/45/45 |
45/45/45 |
45/55/45 |
45/55*4/45 |
55/45*4/55 |
55/45*4/55 |
55/55*4/55 |
|
Tool shank type |
type |
BT40 |
BT40 |
BT40 |
BT40 |
BT50 |
BT50 |
BT50 |
BT50 |
|
Tool magazine capacity |
pcs |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
Max. tool diameter(adjacent/non-adjacent ) |
mm |
φ80/φ150 |
φ80/φ150 |
φ80/φ150 |
φ80/φ150 |
φ110/φ220 |
φ110/φ220 |
φ110/φ220 |
φ110/φ220 |
|
Max. tool length |
mm |
250 |
250 |
250 |
250 |
350 |
350 |
350 |
350 |
|
Max. tool weight |
kg |
8 |
8 |
8 |
8 |
15 |
15 |
15 |
15 |
|
Tool change method |
type |
arm type |
arm type |
arm type |
arm type |
arm type |
arm type |
arm type |
arm type |
|
Tool change time (tool to tool) |
sec. |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
|
Spindle drive type |
|
Belts / Direct drive |
Belts / Direct drive |
Belts / Direct drive |
Belt |
Belt |
Belt |
Belt |
Belt |
|
Spindle speed |
rpm |
10000/12000 |
10000/12000 |
10000/12000 |
8000 |
8000 |
8000 |
8000 |
8000 |
|
Main motor power S1/S6 25% |
kw |
11/18.5 |
11/18.5 |
11/18.5 |
22/33 (22/33) |
22/33(22/33) |
22/33(22/33) |
22/33(22/33) |
22/33(22/33) |
|
Main motor torque S1/S6 25% |
Nm |
52.5/118 |
52.5/118 |
52.5/118 |
140/260 (210/380) |
140/260 (210/380) |
140/260 (210/380) |
140/260 (210/380) |
140/260 (210/380) |
|
X/Y/Z axis feeding motor power |
kw |
3/3/3 |
3/3/3 |
3/3/3 |
3.8/4.9/4.9 |
3.8/4.9/4.9 |
3.8/4.9/4.9 |
3.8/4.9/4.9 |
3.8/4.9/4.9 |
|
X/Y/Z axis feeding motor torque |
Nm |
20/20/27 |
20/20/27 |
20/20/36 |
18/27/27 |
18/27/27 |
18/27/27 |
18/27/27 |
18/27/27 |
|
Turning coolant motor power |
kw |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
|
Required air pressure |
kg/cm2 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
|
Required power |
kva |
25 |
25 |
30 |
30 |
35 |
35 |
35 |
35 |
|
XYZ-axis positioning accuracy |
mm |
0.008 |
0.008 |
0.008 |
0.008 |
0.008 |
0.009 |
0.009 |
0.009 |
|
XYZ axis repeat positioning accuracy |
mm |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.006 |
0.006 |
0.006 |
|
Machine weight |
kg |
5200 |
5500 |
6000 |
7000 |
7500 |
8000 |
9500 |
10000 |
|
Machine size |
mm |
2700x2400 |
3000x2400 |
3100x2600 |
3400x2900 |
3700x2900 |
4000x3300 |
4100x3300 |
4300x3400 |
|
Machine height |
mm |
2850 |
2850 |
3050 |
3300 |
3300 |
3550 |
3550 |
3550 |
|
Numerical control system |
|
FANUC OIMFPLUS |
FANUC OIMF PLUS |
FANUC OIMFPLUS |
SIEMENS 828D |
SIEMENS 828D |
SIEMENS 828D |
SIEMENS 828D |
SIEMENS 828D |
Fully enclosed protective cover
Transformer (380V→220V)
Basic toolbox
24-tool magazine
Arm-type tool changer
Chain-type automatic chip conveyor + trolley
Manual pulse generator
Direct-drive spindle
Oil-water separator
USB/Ethernet interface
Spindle oil cooling system
10.4-inch color screen
Work lights
Spindle and cutting air blowers
Automatic centralized lubrication system
Pause and work completion indicator lights
X/Y/Z axis rolling guides (P-class)
Air gun + coolant gun
Fault indicator lights
X/Y/Z axis ball screws (C-class)
Electrical cabinet air conditioner
M30 automatic power-off system
Cutting coolant system
FANUC Oi-MF CNC system
Anchor bolts and foundation blocks
32-position Tool Magazine
Renishaw TS27R/NC4 Tool Setter
Oil Mist Collector
Spindle: Belt-driven/Direct-drive/Electric Spindle
Post-processing
XYZ Axis Heidenhain Scale
Spindle Speed: 6000/8000/10000/12000/15000 rpm
Automatic Door with Cylinder
Renishaw Workpiece Measurement OMP40-2/RMP40
Spindle Taper: HSK/BT/BBT
Spindle and Ball Screw Thermal Deformation Compensation
Spindle Circular Sprayer
Internal Spindle Cooling 20 bar/30 bar/50 bar/70 bar
Rotating View Window
Chip Conveyor (Scraper or Spiral Type)
Italian BF Gear Reducer
Ultra-precision C0-grade Ball Screws
Siemens 828D System
Four-axis Rotary Table
Optimized Structure, Uses Better Castings, Increased Weight
