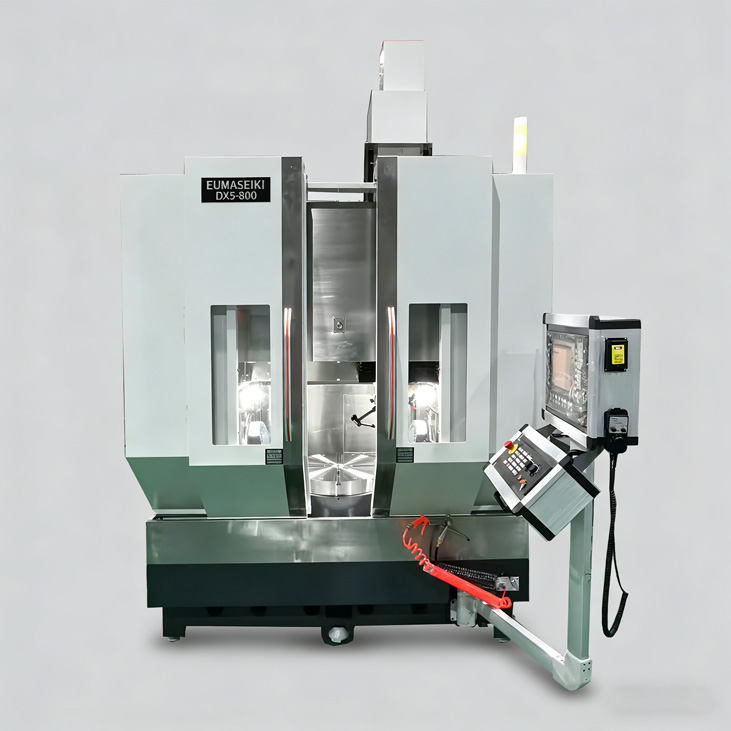

Many high-precision manufacturing projects in aerospace, automotive and mold industries require one-clamp forming for large, heavy and geometrically complex metal components. Ordinary vertical five-axis machines often lack rigidity and workspace, making them unable to handle heavy cutting and large-size workpieces. Developed with mature European engineering concepts, the EUMASEIKI DX Series 5-axis machining centers adopt an upper gantry structure combined with a trapezoidal crossbeam layout. Featuring a dual-arm supported swing table and robust integral frame, this AC-axis five-axis machine achieves steady heavy cutting and dynamic high-precision motion. It is highly suitable for intricate metallic components used in stamping dies, plastic molds, automotive and aviation industries.

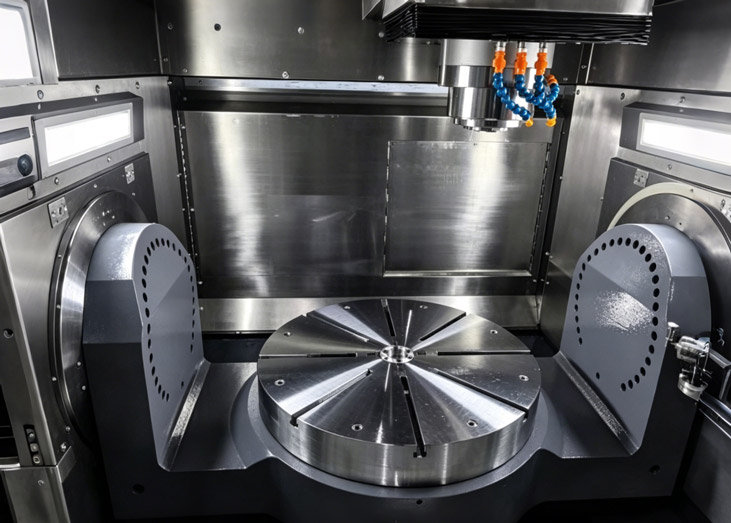

Different from cantilever-type five-axis models, the DX series builds its frame on two fixed side walls to form a stable gantry structure. The crossbeam travels longitudinally along the upper side walls as the X-axis, while the spindle ram completes transverse Y-axis movement along the beam. Vertical Z-axis travel is realized through the sliding spindle ram. The A/C dual-axis tilting rotary table is mounted securely between the two side walls of the base. With support on both ends, this design effectively reduces shaking during tilting and rotation.Driven by high-performance torque motors, the rotary table delivers sensitive and stable angle switching for complex simultaneous five-axis machining. Learn more about structural design and axis performance of the DX5 series to see how gantry-type construction improves overall machining stability.
This series focuses heavily on industrial-grade precision configuration. All linear axes come with standard guideways and Heidenhain linear scales, while the A/C rotary table uses a Heidenhain circular encoder. This gives you accurate positioning and dependable repeatability even during continuous operation. The smart axis layout offers generous machining space without a large footprint. Choose direct-drive or high-speed electric spindles, or explore our customized five-axis solutions for specialized needs.
Built for long-term industrial operation, the DX gantry frame undergoes rigorous mechanical optimization to enhance torsional resistance and vibration suppression. The reinforced trapezoidal crossbeam effectively reduces micro-deformation during heavy stock removal and high-speed five-axis movement. Thanks to its excellent internal thermal balance design, the machine maintains reliable thermal stability even during non-stop production cycles, preventing thermal displacement and precision fluctuation. Such stable mechanical characteristics make the DX series a dependable option for long batch production and high-tolerance component manufacturing.
In terms of practical workshop performance, the DX series brings obvious operational advantages. Its open gantry layout simplifies loading and unloading of large workpieces, lowering daily labor difficulty for operators. The machine supports integrated milling and turning technology, completing multi-angle and multi-surface processing in a single clamping procedure. It seamlessly switches between heavy roughing and delicate finishing, covering complex processing tasks for various metal materials. With outstanding dynamic motion performance and long-term accuracy retention, this five-axis machine continuously delivers consistent finished quality for sophisticated industrial parts.
The EUMASEIKI DX gantry-type 5-axis machine is built specifically for heavy-duty, large-scale five-axis work. It fills the gap between standard vertical five-axis models and high-end industrial equipment. With its dual-wall frame, premium measuring system, and torque motor rotary unit, the DX series machine offers the rigidity and composite machining capability that serious shops look for. Whether you're machining aerospace parts, automotive structural components, or large molds, this machine delivers industrial-grade performance. Looking for a stable gantry five-axis solution? Contact our engineering team for detailed configuration guidance.
