EUMASEIKI is dedicated exclusively to the customization of various 5 axis CNC machining centers with a professional R&D center,a portfolio of patented technologies, as well as professional sales service teams. These designs support 5-sided machining and simultaneous 5-axis milling so that our product range covers diverse sectors including precision mold making, aerospace, automotive parts manufacturing, high-end equipment production, shipbuilding and engineering machinery.

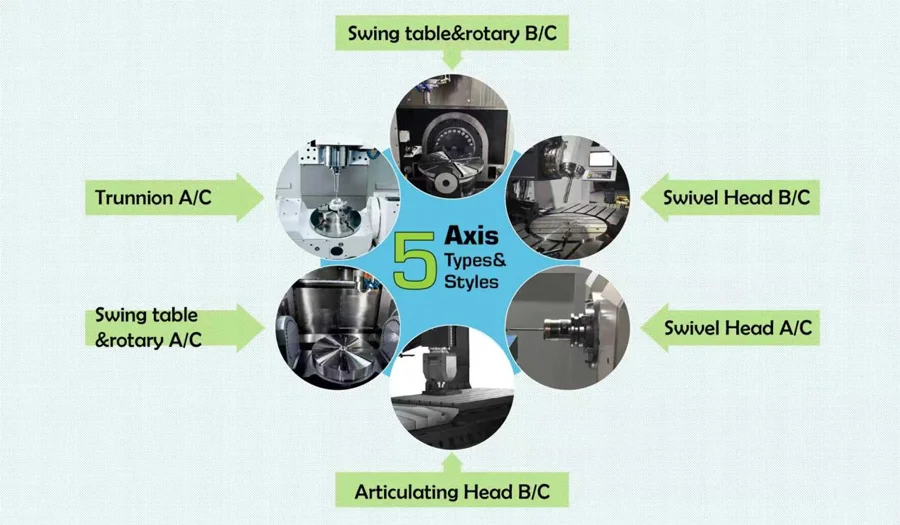

Each configuration is optimized for specific production challenges:
Trunnion A/C: Features tilting rotary table which supports 5-aixs simultaneous control. The workpiece can be titled and rotating in multiple direction along XYZ axis moving by one setup. It significantly improves flexibility, enabling the machining of intricate shapes, undercuts, and angled surfaces that traditional setups would struggle to handle.
Swing table & rotary A/C: Features an upper gantry-type structure with a trapezoid crossbeam design, ensuring excellent rigidity. The frame body provides superior stability while the swing table features dual-arm support, with A/C axes tilting table controlled by torque motors .It is intended for production of metallic parts like pressing, plastic making, automotive and aviation industry.
Swing table & rotary B/C: Features cantilever design while the BC-axis rotary tilting table, driven with torque motor and integrated along the X-axis perfectly for quick 5-axis simultaneous milling to achieving high-speed and high-precision machining of complex parts. Delivers flexible contouring for energy and aerospace applications.
Articulating Head B/C: The bridge and base are designed with an integrated casting structure, all structural components have undergone FEA finite element analysis, which has advantages such as design optimization and structural light weighting. Optional automatic exchange head library and vertical/horizontal tool changing system can be used to create a five face or 5-axis machining machine, widely used by well-known processing factories in the automotive industry, precision mold, aerospace and energy industry.
Swivel Head A/C: Features travelling column swivel head with embedded C-axis rotary table, offers maximum flexibility and maximum the table versatility to use the extra table space for secondary operations or 3-axis work. Capacity to machine a wide range of size and shapes in various materials. 5-aixs simultaneous working with the powerful B-axis milling head and the integrated C-axis to achieve perfect operation performance, balances speed and precision for high-mix job shop production.
Swivel Head B/C: Highly stable European design concepts combine with maximum precision, performance and efficiency allow the highest machining performance and maximum precision with high dynamics. Complete machining with milling and turning on one machine in on set-up. NC-controlled swiveling milling head as A axis for 5-sided machining and simultaneous 5-axis milling, minimizes tool interference for deep, hard-to-reach features in mold making.
These designs solve distinct manufacturing challenges:
Trunnion & Swing table styles prioritize stability for heavy-duty work. Swivel/Articulating Head setups enable agile tool positioning for complex contours. All configurations support single-setup milling and turning, reducing production time and improving part consistency.
EUMASEIKI’s 5-axis lineup lets you select the ideal solution for high-volume output, ultra-precision components, or flexible job shop operations.
EUMASEIKI’s 5-axis CNC machines transform production with faster setups, better quality, and expanded complex-part capacity. Contact our team today to find the perfect 5-axis configuration for your manufacturing needs.
